Alan Gibson 4MM41 - Etched Brass Underframe Kit - 17'6" x 10'

Alan Gibson 4MM41 - Etched Brass Underframe Kit - 17'6" x 10'


Product Information

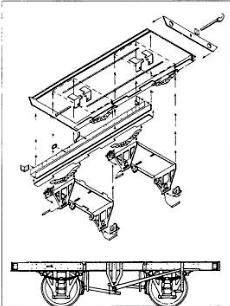

These kits are designed for wagons having a steel channel solebar but can be adapted for wooden solebar variants and they are available in both 9’ and 10’ wheelbase versions. They come with the well proven rocking ‘W’-iron compensation system but provision is made for a rigid chassis to be built if preferred. Both kits are designed to be used with scale 17’6” long bodies although the 9’ wheelbase kit is marked to enable it to be shortened to fit either a 16’6” or a 16’ body as required. The kits are finely etched on 0.012” brass and consist of the following

*Wagon base with channel solebars - adaptable to wooden type:

*Buffer beams - two shapes:


*Lost wax cast brass R.C.H. axleboxes and springs:

*All brake linkages and components for the various types of braking systems;

*Lost wax cast brass vacuum cylinder:

* Lost wax cast brass brake pipes:

*Pin point axle bearings:

* Full assembly instructions with a number of diagrams showing the workings of the various braking systems.

Because of the large number of possible wheel and buffer combinations these components are NOT included in the kits

Product Code4MM41
ManufacturerAlan Gibson
Stock Level5
